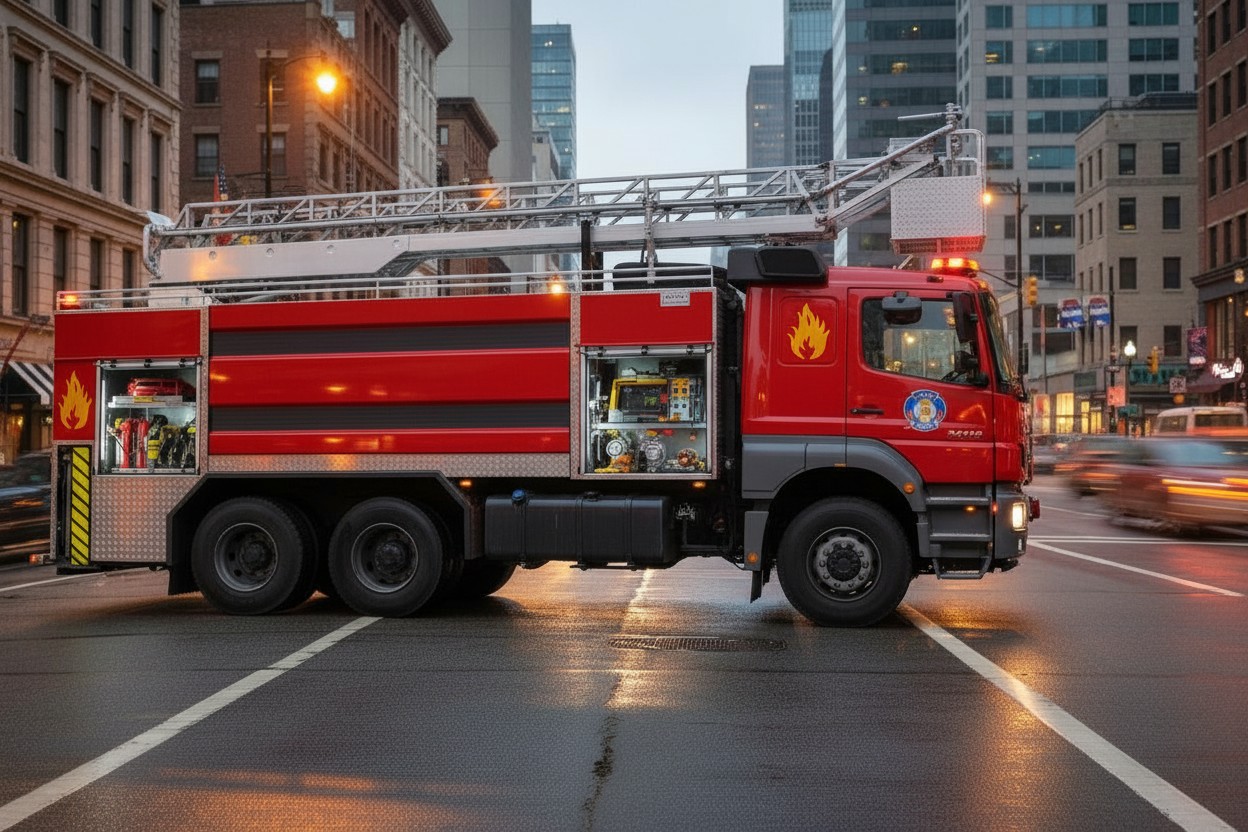

FIRE TRUCK

• Chassis AS CUSTOMER ORDER
• Water 1000 - 10000 liters
• Foam 200 - 1000 liters of foam (for oil storage tanks)
• Carbon dioxide 250 KG (for electrical substation)
• Dry chemical powder: 500 KG (for electrical and floor spare parts stores)
• Water Pump
• Location in a closed compartment in the back
• Type centrifuge
• Output 6,000 rpm @ 10 bar (at 03m suction height)

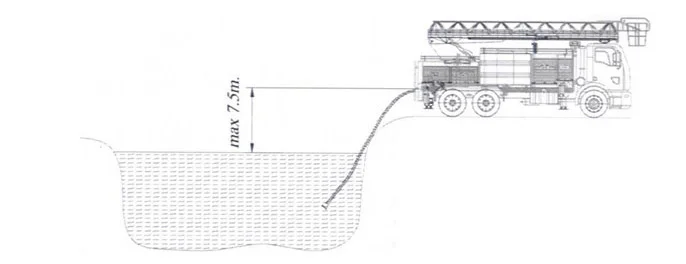

• Automatic suction via double piston vacuum pump - suction height up to 7.5 - automatically operated

• High strength booms made of Domex 960 sheet,
• The power supply is from the pto,
• 350° (+175°) tower rotation,
• Electro&hydraulic automatic basket stabilizer system,
• Lighting lamp in the basket,
• Vehicle start/stop system from the sidecar (vehicle-dependent),
• Control voltage suitable for vehicle voltage,
• Full proportional control system,
•  warning horn during operation,
• Possibility to use from tower and basket,
• System for commissioning the pump from the vehicle cabin,
• Rotating warning lights on the cup,
• Articulated footpads that fit in every terrain position,
• Hand pump for emergency use,
• Emergency stop buttons in control panels,
• Joint boom (180° +5 degrees),
• 3 telescopic + 2 articulating booms,
• 250 kg lifting capacity,
• Aluminum basket
• Aluminum body,
• Plumbing made of stainless steel,
• 3.0000lt/min water pump,
• 3.0000 lt water and 250 lt foam tank,
• 1,500 l/min water monitor,

Hydraulic system;

• Load retention and twin locking valves against hose bursts
• Pressure relief valve against pressure spikes
